Screw Tables
Apple iMac (24-inch, M1, 2021)Screw Tables
A2438/A2439 — iMac21,1/21,2 — EMC 3630/3631
18 unique screws61 total fasteners

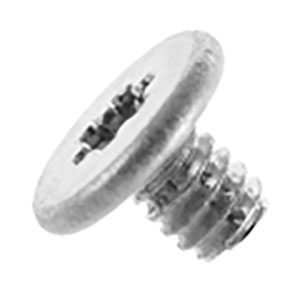

Apple Part Number:923-05557
Screw, EMI Shield, Torx T3
923-05557 - Screws / Screw, EMI Shield, Torx T3 for iMac 24-inch M1 2021 Screw Location(s): EMI shield (iMac 24-inch, M1, 2021, Two ports) (14), iMac (24-inch, M1, 2021, Four ports) (11)
Apple Part Number:923-05562
Screw, USB-C Board to Logic Board, Torx T3
923-05562 - Screws / Screw, USB-C Board to Logic Board, Torx T3 for iMac 24-inch M1 2021 Screw Location(s): Cowling, USB-C board iMac (24-inch, M1, 2021, Two ports) (2), iMac (24-inch, M1, 2021, Four ports) (4)
Apple Part Number:923-05560
Screw, Adapter Board, Torx T3
923-05560 - Screws / Screw, Adapter Board, Torx T3 for iMac 24-inch M1 2021 Screw Location(s): Adatper board (5)
Apple Part Number:923-05559
Screw, Low-Speed Cable, Torx T3
923-05559 - Screws / Screw, Low-Speed Cable, Torx T3 for iMac 24-inch M1 2021 Screw Location(s): Cowling low-speed (Adapter board connector) flex cable (5)
Apple Part Number:923-05573
Screw, Logic Board, Hex 2.5mm
923-05573 - Screws / Screw, Logic Board, Hex 2.5mm for iMac 24-inch M1 2021 Screw Location(s): Logic board iMac (24-inch, M1, 2021, Two ports) (6), iMac (24-inch, M1, 2021, Four ports) (5)
Apple Part Number:923-05556
Screw, Power Port to Logic Board, Hex 2.5mm
923-05556 - Screws / Screw, Power Port to Logic Board, Hex 2.5mm for iMac 24-inch M1 2021 Screw Location(s): Logic board (4)
Apple Part Number:923-05174
Screw, Antenna Ground Clip, Torx T3
923-05174 - Screws / Screw, Antenna Ground Clip, Torx T3 for iMac 24-inch M1 2021 Screw Location(s): Antenna ground clip (2)

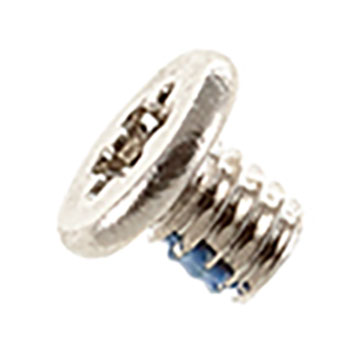

Apple Part Number:923-05173
Screw, Antenna Ground Clip, Torx T3
923-05173 - Screws / Screw, Antenna Ground Clip, Torx T3 for iMac 24-inch M1 2021 Screw Location(s): Antenna ground clip (2)
Apple Part Number:923-05558
Screw, Fan, Torx T3
923-05558 - Screws / Screw, Fan, Torx T3 for iMac 24-inch M1 2021 Screw Location(s): Left fan (1), right fan (1)
Apple Part Number:923-05561
Screw, Low-Speed Cable to Logic Board, Torx T3
923-05561 - Screws / Screw, Low-Speed Cable to Logic Board, Torx T3 for iMac 24-inch M1 2021 Screw Location(s): Cowling, low-speed cable (Logic board connector) (3)
Apple Part Number:923-05555
Screw, USB-C Board, Torx T3
923-05555 - Screws / Screw, USB-C Board, Torx T3 for iMac 24-inch M1 2021 Screw Location(s): USB-C Board (2 per board)
Apple Part Number:923-05574
Screw, Wi-Fi Antenna 1 and 3, Torx T3
923-05574 - Screws / Screw, Wi-Fi Antenna 1 and 3, Torx T3 for iMac 24-inch M1 2021 Screw Location(s): Antennas (5)*
Apple Part Number:923-05669
Screw, Audio Board, Torx T3
923-05669 - Screws / Screw, Audio Board, Torx T3 for iMac 24-inch M1 2021 Screw Location(s): Audio board (1)
Apple Part Number:923-05668
Screw, Antenna Audio Board, Torx T3
923-05668 - Screws / Screw, Antenna Audio Board, Torx T3 for iMac 24-inch M1 2021 Screw Location(s): Audio board to antenna (1)
Apple Part Number:923-05670
Screw, Audio Board Flex, Torx T3
923-05670 - Screws / Screw, Audio Board Flex, Torx T3 for iMac 24-inch M1 2021 Screw Location(s): Audio board flex cable (1)
Apple Part Number:923-05671
Screw, Audio Board, Hex 3.5mm
923-05671 - Screws / Screw, Audio Board, Hex 3.5mm for iMac 24-inch M1 2021 Screw Location(s): Audio board (1)
Apple Part Number:923-05554
Screw, Stand/VESA Mount, Pentalobe 10 (10IP)
923-05554 - Screws / Screw, Stand/VESA Mount, Pentalobe 10 (10IP) for iMac 24-inch M1 2021 Screw Location(s): Stand (5), VESA mount adapter (7)
Apple Part Number:923-06114
Screw, Stand, Shorter, Pentalobe 10 (10IP)
923-06114 - Screws / Screw, Stand, Shorter, Pentalobe 10 (10IP) for iMac 24-inch M1 2021 Screw Location(s): Stand (sides) (2)
