Apple iMac (27-inch, Late 2013)Screw Tables
A1419 — iMac14,2 — EMC 2639
Screw, Shoulder, D4.0, H7.18, M3 x 4, Torx T10
Screw, Torx T5, Camera / iSight
Screw, Phillips 00, Chin Strap, Long
Screw, Shoulder, D4.0, H6, M3 x 4, Torx T10
Left Speaker (2)
Screw, Torx T4, Antenna
Middle Wi-Fi antenna (2)
Lower Wi-Fi antenna (2)
Screw, M3 x 6.0mm, Torx T10
Power supply (2)
Hard drive bracket (3)
Screw, Torx T8, Power Supply
Logic Board (2)
Screw, Shoulder, Torx T10, Heatsink
Standoff / Screw, Power Supply, Torx T25, 13.84mm
Standoff / Screw, Power Supply, 9 Hole Housing, Torx T25, M3
Screw, Solid State Drive (SSD), Torx T8
Screw, Torx T5, Wireless Card
Screw, Torx T5, DIMM Door Latch
Screw, Stand, Torx T8
Screw, Torx T10, Clutch Mechanism
Standoff / Screw, Hard Drive, 9 Hole Housing, Torx T25, M3
Standoff / Screw, Hard Drive, 5 Hole Housing, Torx T25, M3
Screw, VESA Pentalobe P15
Screw / Stud / Standoff, Torx T8, Hard Drive

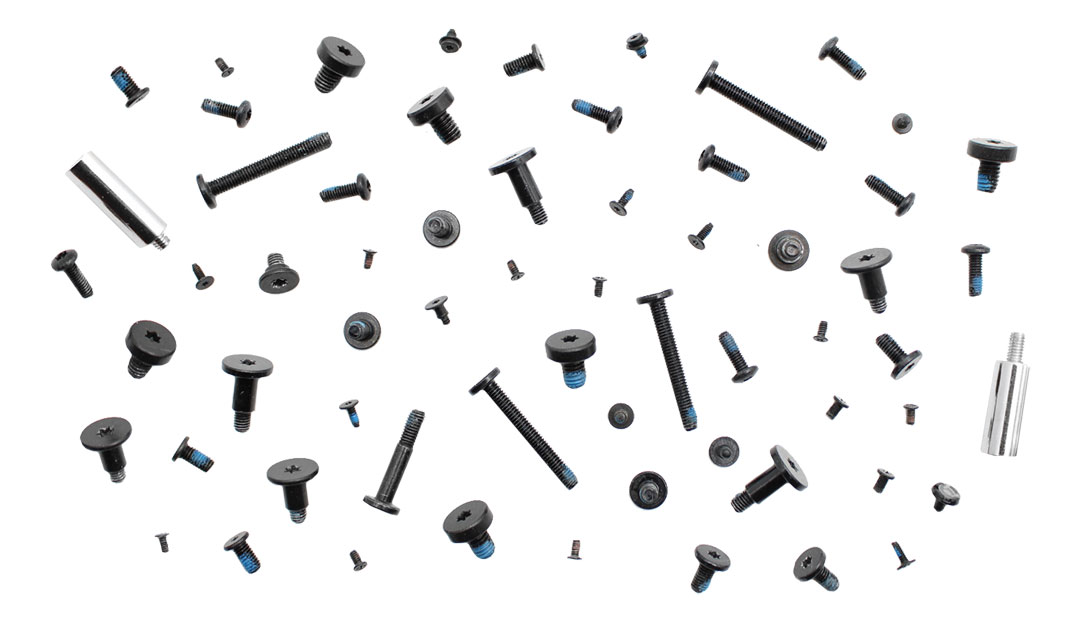

Screws Full Set/Kit, 62+ pieces
Need These Screws?
Browse our inventory of genuine Apple screws, standoffs, and repair tools for the iMac (27-inch, Late 2013).
