Screw Tables
Apple iMac Pro (27-inch, Late 2017)Screw Tables
A1862 — iMacPro1,1 — EMC 3144
17 unique screws63 total fasteners

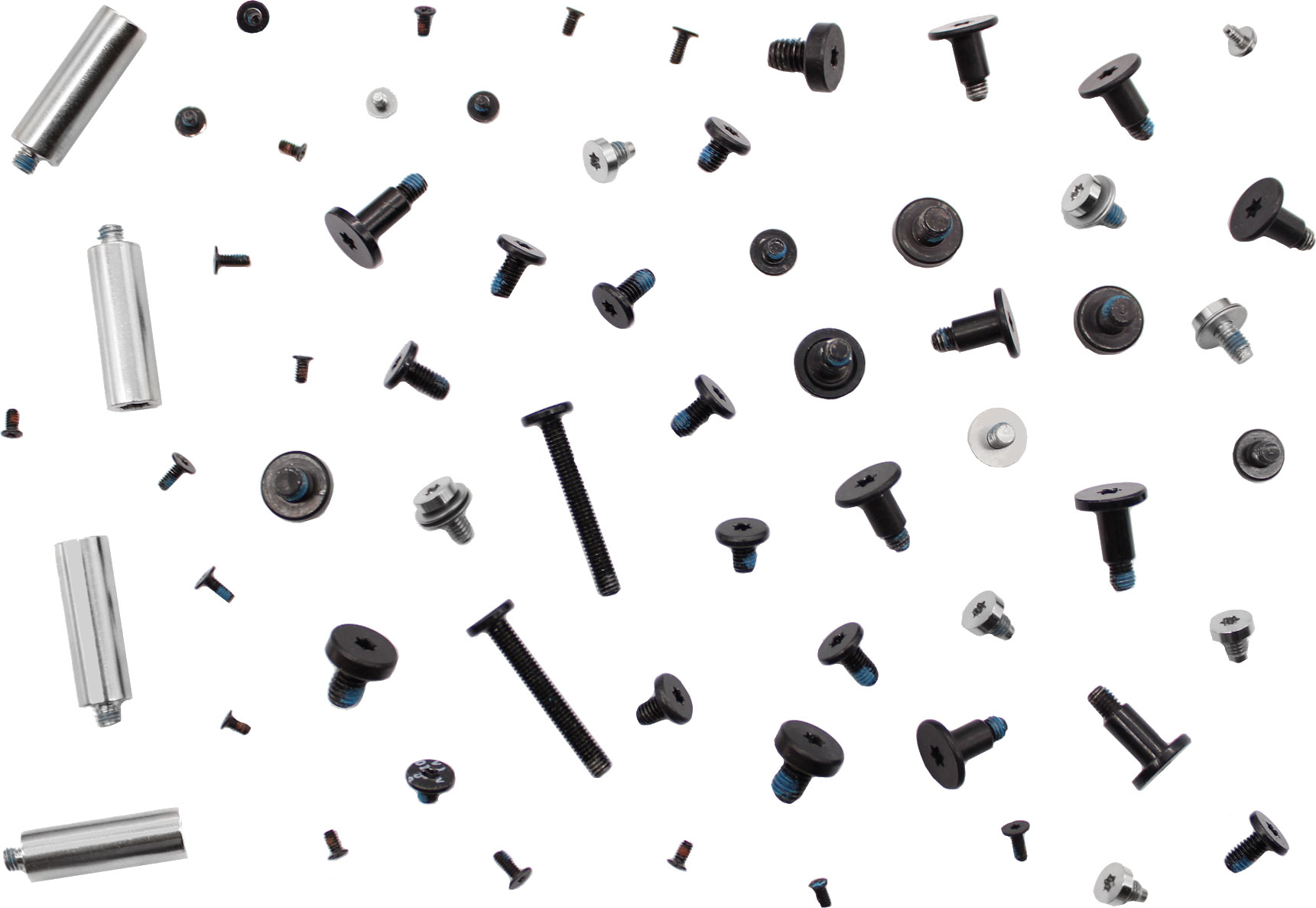

Apple Part Number:999-0023
Screws Full Set/Kit, 60+ Pieces
999-0023 - Screws / Screws Full Set/Kit, 60+ Pieces for iMac Pro 27-inch Late 2017 Screw Location(s):
Apple Part Number:923-0332
Screw, Shoulder, D4.0, H7.18, M3 x 4, Torx T10
923-0332 - Screws / Screw, Shoulder, D4.0, H7.18, M3 x 4, Torx T10 for iMac Pro 27-inch Late 2017 Screw Location(s): Fan (4)
Apple Part Number:923-0338
Screw, Phillips 00, Chin Strap, Long
923-0338 - Screws / Screw, Phillips 00, Chin Strap, Long for iMac Pro 27-inch Late 2017 Screw Location(s): Chin Strap (9)
Apple Part Number:923-0333
Screw, Shoulder, D4.0, H6, M3 x 4, Torx T10
923-0333 - Screws / Screw, Shoulder, D4.0, H6, M3 x 4, Torx T10 for iMac Pro 27-inch Late 2017 Screw Location(s): Right Speaker (3), Left Speaker (3)
Apple Part Number:923-0331
Screw, M3 x 6.0mm, Torx T10
923-0331 - Screws / Screw, M3 x 6.0mm, Torx T10 for iMac Pro 27-inch Late 2017 Screw Location(s): Logic Board (6)
Apple Part Number:923-02294
Screw, Torx T5, Antenna Clip
923-02294 - Screws / Screw, Torx T5, Antenna Clip for iMac Pro 27-inch Late 2017 Screw Location(s): Antenna clip (2)
Apple Part Number:923-0304
Screw, Torx T4, Antenna
923-0304 - Screws / Screw, Torx T4, Antenna for iMac Pro 27-inch Late 2017 Screw Location(s): Bluetooth antenna (2), Middle Wi-Fi antenna (2), Lower Wi-Fi antenna (2)
Apple Part Number:923-02291
Screw, Torx T5, Audio Jack
923-02291 - Screws / Screw, Torx T5, Audio Jack for iMac Pro 27-inch Late 2017 Screw Location(s): Audio Jack Cowling (1)
Apple Part Number:923-02288
Screw, Torx T8, Logic Board to Bus Bar
923-02288 - Screws / Screw, Torx T8, Logic Board to Bus Bar for iMac Pro 27-inch Late 2017 Screw Location(s): Bus Bar to Logic Board (4)
Apple Part Number:923-0396
Screw, Torx T8, Power Supply
923-0396 - Screws / Screw, Torx T8, Power Supply for iMac Pro 27-inch Late 2017 Screw Location(s): Logic board (2)
Apple Part Number:923-02313
Screw, Torx T8, Flash Storage (SSD)
923-02313 - Screws / Screw, Torx T8, Flash Storage (SSD) for iMac Pro 27-inch Late 2017 Screw Location(s): Flash Storage (SSD) (2)
Apple Part Number:923-00609
Screw, Washer, Torx T5
923-00609 - Screws / Screw, Washer, Torx T5 for iMac Pro 27-inch Late 2017 Screw Location(s): Power Supply Cable to Housing (2)
Apple Part Number:923-02293
Screw, Torx T8, Power Supply
923-02293 - Screws / Screw, Torx T8, Power Supply for iMac Pro 27-inch Late 2017 Screw Location(s): Power Supply (4)
Apple Part Number:923-0712
Screw M3, Dogpoint, Short, Torx T8
923-0712 - Screws / Screw M3, Dogpoint, Short, Torx T8 for iMac Pro 27-inch Late 2017 Screw Location(s): Bus Bar to Power Supply (4)
Apple Part Number:923-02215
Screw, Torx T10, Stand
923-02215 - Screws / Screw, Torx T10, Stand for iMac Pro 27-inch Late 2017 Screw Location(s): Stand (9)
Apple Part Number:923-0334
Screw, Torx T10, Clutch Mechanism
923-0334 - Screws / Screw, Torx T10, Clutch Mechanism for iMac Pro 27-inch Late 2017 Screw Location(s): Clutch/Hinge Mechanism to Housing (6)
Apple Part Number:923-02287
Standoff, Fan, Torx T25
923-02287 - Screws / Standoff, Fan, Torx T25 for iMac Pro 27-inch Late 2017 Screw Location(s): Fan Standoff (2), Logic Board Standoff (2)
