Screw Tables
Apple Mac mini (M2 Pro, 2023)Screw Tables
A2886, Mac14,12, EMC 3802
16 unique screws & accessories16 total fasteners
Apple Part Number:923-08140
Logic Board Screw (5 Pieces)
Secures the logic board to the housing
Apple Part Number:923-00230
I/O Wall to Logic Board Screw (5 Pieces)
Secures the input/output wall to the logic board
Apple Part Number:923-02800
I/O Wall to Heat Sink Screw (5 Pieces)
Secures the input/output wall to the heat sink
Apple Part Number:923-02796
Power Supply Screw (5 Pieces)
Secures the power supply to the housing
Apple Part Number:923-08141
Bus Bar to Power Supply Screw (5 Pieces)
Secures the bus bar to the power supply

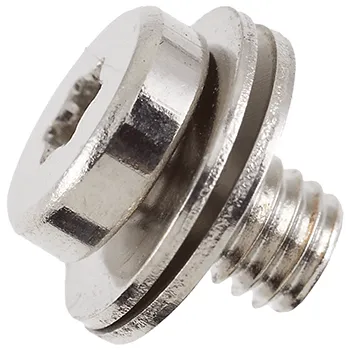

Apple Part Number:923-08143
Bus Bar to Logic Board Screw (5 Pieces)
Secures the bus bar to the logic board
Apple Part Number:923-08139
Fan to Housing Screw (5 Pieces)
Secures the fan to the housing
Apple Part Number:923-08146
Fan to Housing Standoff Screw (5 Pieces)
Standoff screw securing the fan to the housing
Apple Part Number:923-02803
Fan Screw (5 Pieces)
Secures the fan assembly
Apple Part Number:923-02801
Speaker Screw (5 Pieces)
Secures the speaker to the housing
Apple Part Number:923-07582
Antenna Plate Shoulder Screw (5 Pieces)
Shoulder screw securing the antenna plate

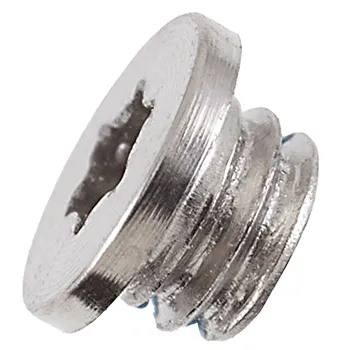

Apple Part Number:923-07583
Antenna Plate Footplate Screw (5 Pieces)
Footplate screw securing the antenna plate
Apple Part Number:923-03034
Antenna Coaxial Cable Grounding Clip Screw (5 Pieces)
Secures the antenna coaxial cable grounding clip
Apple Part Number:923-02789
AC Inlet Retention Clip
Retention clip for the AC inlet
Apple Part Number:923-02795
AC Inlet Cowling
Cowling for the AC inlet
Apple Part Number:923-08145
Bus Bar
Bus bar connecting power supply to logic board
