Apple Mac Pro (Late 2013)Screw Tables
A1481 \u2014 MacPro6,1 \u2014 EMC 2630
Screw, Housing Lock Switch, Torx T5
Screw M2.5, Dogpoint, Torx T8
Screw M3, NS, Torx T10
Inlet to I/O / PSU Assembly (2)
Exhaust Assembly to Core (3)
Exhaust Assembly to I/O / PSU Assembly (2)

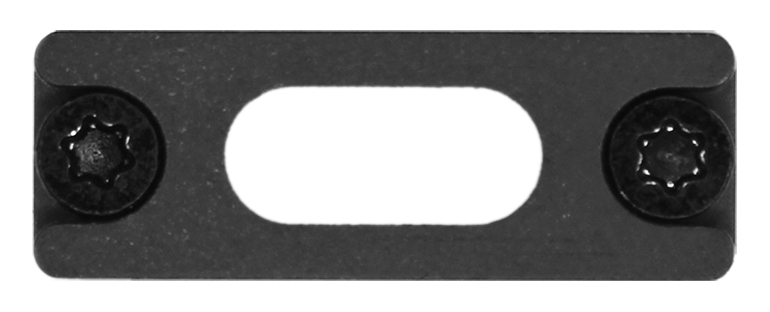

Interposer Flex Cable Retaining Bracket w/ Screws
Screw M2, 5.00, Torx T8
Screw M2, 3.00, Torx T5
Interposer Board Cover to Exhaust (3)
Exhaust Manifold to Exhaust (3)
Wi-Fi Antenna to Exhaust (3)
Audio Jack to I/O Wall (3)
Screw M1.6, 1.75, Torx T5
Screw M3, 3.0, Shoulder, Torx T10
Screw M1.6, Wafer Head, Torx T5
Screw M1.6, Power Supply Cover, Torx T5
Screw M3, Dogpoint, Short, Torx T8
Bus Bars to Power Supply (4)
Screw M3, Power Supply, Torx T10
Power Supply to I/O Board (4)
Screw M2, 2.50, Torx T5
Speaker to I/O Board (2)
Screw M2 w/ Washer, AC Inlet, Torx T5
Screw M3, No Dogpoint, 0.35, w/ Washer, Bus Bar, Torx T8
Bus Bar B to Graphics Board B (2)
Screw M3, Shoulder, 4.15, Torx T10
Graphics Board B to Core (4)
Screw M3, Shoulder, 6.0, Torx T10
Core Standoff
Standoff 1/4-inch Hex Nut, CPU Riser Card
Video/Graphics Board Standoff
Thermal Core to Graphics Card B (4)
Screw, Memory (DIMM) Mechanism, Torx T5
