Screw Tables
Apple MacBook Air (11", Early 2014)Screw Tables
A1465 - MacBookAir6,1 - EMC 2631
13 unique screws45 total fasteners
Apple Part Number:922-9694
Screw, Torx T5, 2.53 mm
Heatsink to Logic Board (4)
Apple Part Number:922-9255
Screw, 1.2mm x 0.25mm x 1.15mm, Black
Trackpad Flexure (12)
Apple Part Number:922-9685
Screw, Bottom Case, Short, Pentalobe
Bottom Case Exterior (8)
Apple Part Number:922-9686
Screw, Cosmetic, Long, Pentalobe
Bottom Case Exterior (2)
Apple Part Number:922-9688
Screw, Display Clutch/Hinge, Torx T8
Display Clutch Hinge (4)
Apple Part Number:922-9689
Screw, Battery, Torx T5, Rear
Battery to Top Case (rear) (2)
Apple Part Number:922-9690
Screw, Battery, Front, Torx T5
Battery to Top Case (front) (2)
Apple Part Number:922-9691
Screw, Fan
Fan to Top Case (1)
Fan to I/O Board (1)
Fan to I/O Board (1)
Apple Part Number:922-9692
Screw, Torx T5, 3.62 mm
Fan to Logic Board (1)
I/O Board to Top Case (1)
Logic Board to Top Case (3)
I/O Board to Top Case (1)
Logic Board to Top Case (3)
Apple Part Number:922-9693
Screw, Torx T5, 6.02 mm
Battery to Top Case (center) (1)
Apple Part Number:922-9732
Screw, Trackpad, Torx T5
Trackpad (center) (1)
Apple Part Number:922-9651
Screw, 2 x 2mm, Torx T5
Solid State Drive (SSD) (1)
AirPort/Bluetooth (Wireless) Card (1)
AirPort/Bluetooth (Wireless) Card (1)

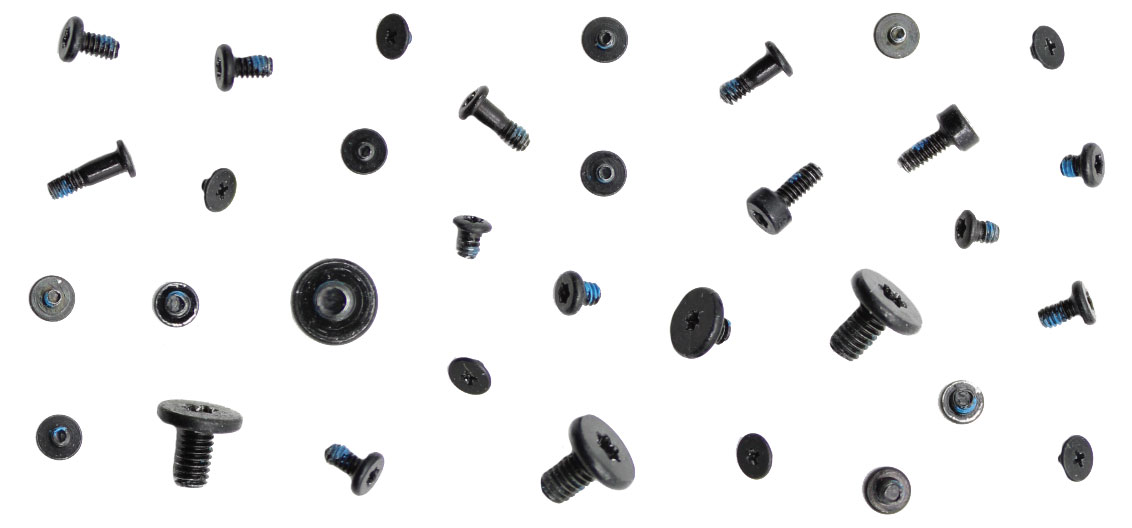

Apple Part Number:999-0014
Screws Full Set/Kit, 30+ Pieces
