Screw Tables/13-inch, 2016, 4 TBT3 Ports
Screw Tables

Apple MacBook Pro (13-inch, 2016, 4 TBT3 Ports)Screw Tables

A1706 — MacBookPro13,2 — EMC 3071

24 unique screws83 total fasteners

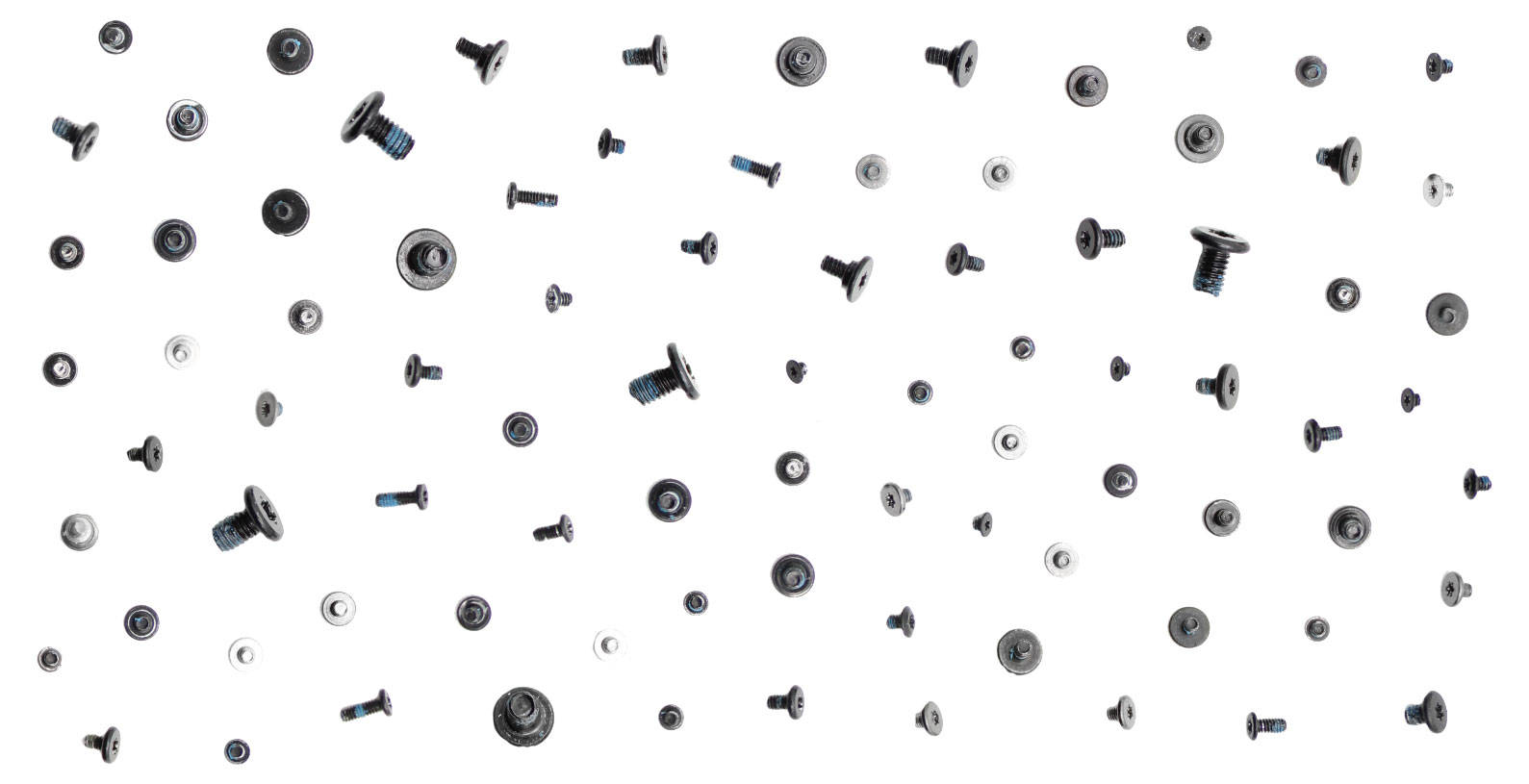

999-0010 – Screws Full Set/Kit, 70+ Pieces
Apple Part Number:999-0010

Screws Full Set/Kit, 70+ Pieces

999-0010 - Screws / Screws Full Set/Kit, 70+ Pieces for MacBook Pro 13-inch 2016 4 TBT3 Screw Location(s):
923-01413 – Screw, Bottom Case, Front, Space Gray
Apple Part Number:923-01413

Screw, Bottom Case, Front, Space Gray

923-01413 - Screws / Screw, Bottom Case, Front, Space Gray for MacBook Pro 13-inch 2016 4 TBT3 Screw Location(s): Bottom Case (front) (4)
923-01415 – Screw, Bottom Case, Back Corners, Silver
Apple Part Number:923-01415

Screw, Bottom Case, Back Corners, Silver

923-01415 - Screws / Screw, Bottom Case, Back Corners, Silver for MacBook Pro 13-inch 2016 4 TBT3 Screw Location(s): Bottom Case (rear corners) (2)
923-01096 – Screw, Bottom Case, Back Corners, Space Gray
Apple Part Number:923-01096

Screw, Bottom Case, Back Corners, Space Gray

923-01096 - Screws / Screw, Bottom Case, Back Corners, Space Gray for MacBook Pro 13-inch 2016 4 TBT3 Screw Location(s): Bottom Case (rear corners) (2)
923-01431 – Screw, Bottom Case, Front, Silver
Apple Part Number:923-01431

Screw, Bottom Case, Front, Silver

923-01431 - Screws / Screw, Bottom Case, Front, Silver for MacBook Pro 13-inch 2016 4 TBT3 Screw Location(s): Bottom Case (front) (4)
923-01418 – Screw, M1.6, Flex, BMU, X379, Torx T5
Apple Part Number:923-01418

Screw, M1.6, Flex, BMU, X379, Torx T5

923-01418 - Screws / Screw, M1.6, Flex, BMU, X379, Torx T5 for MacBook Pro 13-inch 2016 4 TBT3 Screw Location(s): Battery Management Unit (BMU) (1)
923-01286 – Screw, Display Clutch Cover, Torx T3
Apple Part Number:923-01286

Screw, Display Clutch Cover, Torx T3

923-01286 - Screws / Screw, Display Clutch Cover, Torx T3 for MacBook Pro 13-inch 2016 4 TBT3 Screw Location(s): Left Display Clutch Cover (2), Right Display Clutch Cover (2)
923-01284 – Screw, Lower Cowling, eDP Flex Cable, Torx T3
Apple Part Number:923-01284

Screw, Lower Cowling, eDP Flex Cable, Torx T3

923-01284 - Screws / Screw, Lower Cowling, eDP Flex Cable, Torx T3 for MacBook Pro 13-inch 2016 4 TBT3 Screw Location(s): TCON Lower Cowling to Rear Wall (2)
923-01285 – Screw, eDP / TCON Upper Cowling, Torx T3
Apple Part Number:923-01285

Screw, eDP / TCON Upper Cowling, Torx T3

923-01285 - Screws / Screw, eDP / TCON Upper Cowling, Torx T3 for MacBook Pro 13-inch 2016 4 TBT3 Screw Location(s): Cowling TCON / eDP (2)
923-01277 – Screw, TCON Board, Torx T5
Apple Part Number:923-01277

Screw, TCON Board, Torx T5

923-01277 - Screws / Screw, TCON Board, Torx T5 for MacBook Pro 13-inch 2016 4 TBT3 Screw Location(s): TCON to Top Case (4)
923-01441 – Screw, Cowling, Torx T5
Apple Part Number:923-01441

Screw, Cowling, Torx T5

923-01441 - Screws / Screw, Cowling, Torx T5 for MacBook Pro 13-inch 2016 4 TBT3 Screw Location(s): I/O Board to Top Case (4)
923-01427 – Screw, Logic Board, Torx T5
Apple Part Number:923-01427

Screw, Logic Board, Torx T5

923-01427 - Screws / Screw, Logic Board, Torx T5 for MacBook Pro 13-inch 2016 4 TBT3 Screw Location(s): Logic Board (6)
923-01191 – Screw, Vent / Antenna Module, Pentalobe P2 (1IPR)
Apple Part Number:923-01191

Screw, Vent / Antenna Module, Pentalobe P2 (1IPR)

923-01191 - Screws / Screw, Vent / Antenna Module, Pentalobe P2 (1IPR) for MacBook Pro 13-inch 2016 4 TBT3 Screw Location(s): Vent / Antenna Module (12)
923-01185 – Screw, Spring Tensioner, Torx T3
Apple Part Number:923-01185

Screw, Spring Tensioner, Torx T3

923-01185 - Screws / Screw, Spring Tensioner, Torx T3 for MacBook Pro 13-inch 2016 4 TBT3 Screw Location(s): Display Spring Tensioners to Rear Wall (4)
923-01641 – Screw, M1.2, Logic Board, Bottom Cowling, Torx T3
Apple Part Number:923-01641

Screw, M1.2, Logic Board, Bottom Cowling, Torx T3

923-01641 - Screws / Screw, M1.2, Logic Board, Bottom Cowling, Torx T3 for MacBook Pro 13-inch 2016 4 TBT3 Screw Location(s): Audio Cable Cowling (2), Track Pad Flex Cowling (2), Keyboard Flex Cowling (2), Data Migration Cowling (2), Touch Bar Touch (1), Touch Bar Display (2)
923-01173 – Screw, Display Assembly Clutch / Hinge, Torx T8
Apple Part Number:923-01173

Screw, Display Assembly Clutch / Hinge, Torx T8

923-01173 - Screws / Screw, Display Assembly Clutch / Hinge, Torx T8 for MacBook Pro 13-inch 2016 4 TBT3 Screw Location(s): Display Clutch / Hinge to Top Case (6)
923-01411 – Screw, I/O Cowling, Torx T3
Apple Part Number:923-01411

Screw, I/O Cowling, Torx T3

923-01411 - Screws / Screw, I/O Cowling, Torx T3 for MacBook Pro 13-inch 2016 4 TBT3 Screw Location(s): I/O Board Cowling to Logic Board (4)
923-01425 – Screw, M1.6 x 2.0, Torx T5, TM Tie Down, Shoulder
Apple Part Number:923-01425

Screw, M1.6 x 2.0, Torx T5, TM Tie Down, Shoulder

923-01425 - Screws / Screw, M1.6 x 2.0, Torx T5, TM Tie Down, Shoulder for MacBook Pro 13-inch 2016 4 TBT3 Screw Location(s): Heatsink to Logic to Top Case (2)
923-01426 – Screw, Logic Board, Torx T3
Apple Part Number:923-01426

Screw, Logic Board, Torx T3

923-01426 - Screws / Screw, Logic Board, Torx T3 for MacBook Pro 13-inch 2016 4 TBT3 Screw Location(s): Logic Board (3)
923-01407 – Screw, Shoulder, M1.6, Stage, X379, Torx T5
Apple Part Number:923-01407

Screw, Shoulder, M1.6, Stage, X379, Torx T5

923-01407 - Screws / Screw, Shoulder, M1.6, Stage, X379, Torx T5 for MacBook Pro 13-inch 2016 4 TBT3 Screw Location(s): Heatsink (4)
923-01422 – Screw, M1.2, eDP Flex Cowling to Logic Board, X379, Torx T3
Apple Part Number:923-01422

Screw, M1.2, eDP Flex Cowling to Logic Board, X379, Torx T3

923-01422 - Screws / Screw, M1.2, eDP Flex Cowling to Logic Board, X379, Torx T3 for MacBook Pro 13-inch 2016 4 TBT3 Screw Location(s): Display (eDP) Flex Cable Cowling (2)
923-01423 – Screw, Fan, Black, Torx T3
Apple Part Number:923-01423

Screw, Fan, Black, Torx T3

923-01423 - Screws / Screw, Fan, Black, Torx T3 for MacBook Pro 13-inch 2016 4 TBT3 Screw Location(s): Left Fan (4), Right Fan (4)
923-01442 – Screw, Touch ID, Torx T3, Black
Apple Part Number:923-01442

Screw, Touch ID, Torx T3, Black

923-01442 - Screws / Screw, Touch ID, Torx T3, Black for MacBook Pro 13-inch 2016 4 TBT3 Screw Location(s): Touch ID (inner screws) (2)
923-01443 – Screw, Touch ID, Torx T3, Silver
Apple Part Number:923-01443

Screw, Touch ID, Torx T3, Silver

923-01443 - Screws / Screw, Touch ID, Torx T3, Silver for MacBook Pro 13-inch 2016 4 TBT3 Screw Location(s): Touch ID (outer screws) (4)
