Screw Tables/13-inch, 2019, 2 TBT3 Ports
Screw Tables

Apple MacBook Pro (13-inch, 2019, 2 TBT3 Ports)Screw Tables

A2159 — MacBookPro15,4 — EMC 3301

35 unique screws86 total fasteners
923-02513 – Screw, I/O Board Cowling, Torx T3
Apple Part Number:923-02513

Screw, I/O Board Cowling, Torx T3

923-02513 - Screws / Screw, I/O Board Cowling, Torx T3 for MacBook Pro 13-inch 2019 2 TBT3 Screw Location(s):
923-03198 – Screw, Bottom Case, Rear/Back Corners, Space Gray, Pentalobe P5
Apple Part Number:923-03198

Screw, Bottom Case, Rear/Back Corners, Space Gray, Pentalobe P5

923-03198 - Screws / Screw, Bottom Case, Rear/Back Corners, Space Gray, Pentalobe P5 for MacBook Pro 13-inch 2019 2 TBT3 Screw Location(s): Bottom Case (rear/top corners) (2)
923-03201 – Screw, Bottom Case, Top Corners, Silver, Pentalobe P5
Apple Part Number:923-03201

Screw, Bottom Case, Top Corners, Silver, Pentalobe P5

923-03201 - Screws / Screw, Bottom Case, Top Corners, Silver, Pentalobe P5 for MacBook Pro 13-inch 2019 2 TBT3 Screw Location(s): Bottom Case (rear/top corners) (2)
923-03199 – Screw, Bottom Case, Front Corners, Space Gray, Pentalobe P5
Apple Part Number:923-03199

Screw, Bottom Case, Front Corners, Space Gray, Pentalobe P5

923-03199 - Screws / Screw, Bottom Case, Front Corners, Space Gray, Pentalobe P5 for MacBook Pro 13-inch 2019 2 TBT3 Screw Location(s): Bottom Case (front corners) (2)
923-03202 – Screw, Bottom Case, Front Corners, Silver, Pentalobe P5
Apple Part Number:923-03202

Screw, Bottom Case, Front Corners, Silver, Pentalobe P5

923-03202 - Screws / Screw, Bottom Case, Front Corners, Silver, Pentalobe P5 for MacBook Pro 13-inch 2019 2 TBT3 Screw Location(s): Bottom Case (front corners) (2)
923-03200 – Screw, Bottom Case, Front Center, Space Gray, Pentalobe P5
Apple Part Number:923-03200

Screw, Bottom Case, Front Center, Space Gray, Pentalobe P5

923-03200 - Screws / Screw, Bottom Case, Front Center, Space Gray, Pentalobe P5 for MacBook Pro 13-inch 2019 2 TBT3 Screw Location(s): Bottom Case (front center) (2)
923-03203 – Screw, Bottom Case, Front Center, Silver, Pentalobe P5
Apple Part Number:923-03203

Screw, Bottom Case, Front Center, Silver, Pentalobe P5

923-03203 - Screws / Screw, Bottom Case, Front Center, Silver, Pentalobe P5 for MacBook Pro 13-inch 2019 2 TBT3 Screw Location(s): Bottom Case (front center) (2)
923-01189 – Screw, BMU Flex Cable, Torx T5
Apple Part Number:923-01189

Screw, BMU Flex Cable, Torx T5

923-01189 - Screws / Screw, BMU Flex Cable, Torx T5 for MacBook Pro 13-inch 2019 2 TBT3 Screw Location(s): Battery (BMU) (1)
923-03289 – Screw, Cowling, Trackpad and Touch Bar, Tox T5
Apple Part Number:923-03289

Screw, Cowling, Trackpad and Touch Bar, Tox T5

923-03289 - Screws / Screw, Cowling, Trackpad and Touch Bar, Tox T5 for MacBook Pro 13-inch 2019 2 TBT3 Screw Location(s): Trackpad Flex Cable Cowling (2),Touch Bar Flex Cable Cowling (1)
923-03526 – Screw, Cowling, Audio Board Flex, Upper, Torx T5
Apple Part Number:923-03526

Screw, Cowling, Audio Board Flex, Upper, Torx T5

923-03526 - Screws / Screw, Cowling, Audio Board Flex, Upper, Torx T5 for MacBook Pro 13-inch 2019 2 TBT3 Screw Location(s): Audio Flex Cable Cowling Upper/Front (1)
923-03527 – Screw, Cowling, Audio Board Flex, Lower, Torx T5
Apple Part Number:923-03527

Screw, Cowling, Audio Board Flex, Lower, Torx T5

923-03527 - Screws / Screw, Cowling, Audio Board Flex, Lower, Torx T5 for MacBook Pro 13-inch 2019 2 TBT3 Screw Location(s): Audio Flex Cable Cowling Lower/Front (1)
923-03554 – Screw, Cowling, Touch ID, Lower, Torx T3
Apple Part Number:923-03554

Screw, Cowling, Touch ID, Lower, Torx T3

923-03554 - Screws / Screw, Cowling, Touch ID, Lower, Torx T3 for MacBook Pro 13-inch 2019 2 TBT3 Screw Location(s): Touch ID Cowling Lower/Front (1)
923-03286 – Screw, Cowling, eDP Flex, Lower, Torx T3
Apple Part Number:923-03286

Screw, Cowling, eDP Flex, Lower, Torx T3

923-03286 - Screws / Screw, Cowling, eDP Flex, Lower, Torx T3 for MacBook Pro 13-inch 2019 2 TBT3 Screw Location(s): eDP Flex Cable Cowling Lower/Front (2)
923-01285 – Screw, eDP / TCON Upper Cowling, Torx T3
Apple Part Number:923-01285

Screw, eDP / TCON Upper Cowling, Torx T3

923-01285 - Screws / Screw, eDP / TCON Upper Cowling, Torx T3 for MacBook Pro 13-inch 2019 2 TBT3 Screw Location(s): eDP Flex Cable Upper Cowling (2)
923-03559 – Screw, IO (USB-C) Board, Torx T5
Apple Part Number:923-03559

Screw, IO (USB-C) Board, Torx T5

923-03559 - Screws / Screw, IO (USB-C) Board, Torx T5 for MacBook Pro 13-inch 2019 2 TBT3 Screw Location(s): I/O Board (USB-C/TBT3 Ports) (2)
923-03282 – Screw, Antenna Ground, Torx T5
Apple Part Number:923-03282

Screw, Antenna Ground, Torx T5

923-03282 - Screws / Screw, Antenna Ground, Torx T5 for MacBook Pro 13-inch 2019 2 TBT3 Screw Location(s): Wireless Antenna (1)
923-03281 – Screw, Logic Board, Torx T5
Apple Part Number:923-03281

Screw, Logic Board, Torx T5

923-03281 - Screws / Screw, Logic Board, Torx T5 for MacBook Pro 13-inch 2019 2 TBT3 Screw Location(s): Logic Board (1)
923-01180 – Screw, M1.2 x 0.25, Board, X520, Torx T5
Apple Part Number:923-01180

Screw, M1.2 x 0.25, Board, X520, Torx T5

923-01180 - Screws / Screw, M1.2 x 0.25, Board, X520, Torx T5 for MacBook Pro 13-inch 2019 2 TBT3 Screw Location(s): Logic Board (2)
923-03290 – Screw, Heatsink, Hex 3mm
Apple Part Number:923-03290

Screw, Heatsink, Hex 3mm

923-03290 - Screws / Screw, Heatsink, Hex 3mm for MacBook Pro 13-inch 2019 2 TBT3 Screw Location(s): Heatsink (1)
923-01407 – Screw, Shoulder, M1.6, Stage, X379, Torx T5
Apple Part Number:923-01407

Screw, Shoulder, M1.6, Stage, X379, Torx T5

923-01407 - Screws / Screw, Shoulder, M1.6, Stage, X379, Torx T5 for MacBook Pro 13-inch 2019 2 TBT3 Screw Location(s): Heatsink Springs (4)
923-01190 – Screw, Cowling, TCON Flex, Torx T3
Apple Part Number:923-01190

Screw, Cowling, TCON Flex, Torx T3

923-01190 - Screws / Screw, Cowling, TCON Flex, Torx T3 for MacBook Pro 13-inch 2019 2 TBT3 Screw Location(s): eDP Flex Cable to Logic Board (2)
923-03538 – Screw, Speaker, Torx T5
Apple Part Number:923-03538

Screw, Speaker, Torx T5

923-03538 - Screws / Screw, Speaker, Torx T5 for MacBook Pro 13-inch 2019 2 TBT3 Screw Location(s): Left Speaker (1), Right Speaker (1)
923-03540 – Screw, Speaker, Torx T5
Apple Part Number:923-03540

Screw, Speaker, Torx T5

923-03540 - Screws / Screw, Speaker, Torx T5 for MacBook Pro 13-inch 2019 2 TBT3 Screw Location(s): Right Speaker (1)
923-03539 – Screw, Speaker, Left, Torx T5
Apple Part Number:923-03539

Screw, Speaker, Left, Torx T5

923-03539 - Screws / Screw, Speaker, Left, Torx T5 for MacBook Pro 13-inch 2019 2 TBT3 Screw Location(s): Left Speaker (1)
923-01286 – Screw, Display Clutch Cover, Torx T3
Apple Part Number:923-01286

Screw, Display Clutch Cover, Torx T3

923-01286 - Screws / Screw, Display Clutch Cover, Torx T3 for MacBook Pro 13-inch 2019 2 TBT3 Screw Location(s): Left Display Clutch/Hinge Covers (2), Right Display Clutch/Hinge Covers (2)
923-03284 – Screw, TCON Board, Torx T5
Apple Part Number:923-03284

Screw, TCON Board, Torx T5

923-03284 - Screws / Screw, TCON Board, Torx T5 for MacBook Pro 13-inch 2019 2 TBT3 Screw Location(s): Display TCON Board (4)
923-03288 – Screw, Vent Antenna, 1IPR, Pentalobe P2
Apple Part Number:923-03288

Screw, Vent Antenna, 1IPR, Pentalobe P2

923-03288 - Screws / Screw, Vent Antenna, 1IPR, Pentalobe P2 for MacBook Pro 13-inch 2019 2 TBT3 Screw Location(s): Vent/Antenna Module (12)
923-03285 – Screw, Spring Tensioner, Torx T3
Apple Part Number:923-03285

Screw, Spring Tensioner, Torx T3

923-03285 - Screws / Screw, Spring Tensioner, Torx T3 for MacBook Pro 13-inch 2019 2 TBT3 Screw Location(s): Display Spring Tensioners (4)
923-03283 – Screw, Display Clutch to Top Case, Torx T8
Apple Part Number:923-03283

Screw, Display Clutch to Top Case, Torx T8

923-03283 - Screws / Screw, Display Clutch to Top Case, Torx T8 for MacBook Pro 13-inch 2019 2 TBT3 Screw Location(s): Left Display Clutch/Hinge to Top Case (3),Right Display Clutch/Hine to Top Case (3)

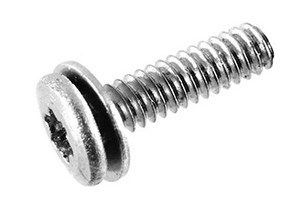

923-03280 – Screw, Audio Jack, Torx T3
Apple Part Number:923-03280

Screw, Audio Jack, Torx T3

923-03280 - Screws / Screw, Audio Jack, Torx T3 for MacBook Pro 13-inch 2019 2 TBT3 Screw Location(s): Audio Jack (2)
923-03556 – Screw, Touch ID, Middle, Torx T3
Apple Part Number:923-03556

Screw, Touch ID, Middle, Torx T3

923-03556 - Screws / Screw, Touch ID, Middle, Torx T3 for MacBook Pro 13-inch 2019 2 TBT3 Screw Location(s): Touch ID Middle (inner) (2)
923-03555 – Screw, Touch ID, Outside, Torx T3
Apple Part Number:923-03555

Screw, Touch ID, Outside, Torx T3

923-03555 - Screws / Screw, Touch ID, Outside, Torx T3 for MacBook Pro 13-inch 2019 2 TBT3 Screw Location(s): Touch ID Outter (corners) (4)
923-03279 – Screw, CPU Fan, Torx T5
Apple Part Number:923-03279

Screw, CPU Fan, Torx T5

923-03279 - Screws / Screw, CPU Fan, Torx T5 for MacBook Pro 13-inch 2019 2 TBT3 Screw Location(s): CPU Fan (4)
923-03557 – Screw, Trackpad, Middle, Torx T5
Apple Part Number:923-03557

Screw, Trackpad, Middle, Torx T5

923-03557 - Screws / Screw, Trackpad, Middle, Torx T5 for MacBook Pro 13-inch 2019 2 TBT3 Screw Location(s): Trackpad (Middle) (2)
923-03558 – Screw, Trackpad, Side, Torx T5
Apple Part Number:923-03558

Screw, Trackpad, Side, Torx T5

923-03558 - Screws / Screw, Trackpad, Side, Torx T5 for MacBook Pro 13-inch 2019 2 TBT3 Screw Location(s): Trackpad (Sides) (8)
