Screw Tables/13-inch, 2020, 2 TBT3 Ports
Screw Tables

Apple MacBook Pro (13-inch, 2020, 2 TBT3 Ports)Screw Tables

A2289 — MacBookPro16,3 — EMC 3456

33 unique screws92 total fasteners
923-04179 – Screw, Bottom Case, Front Corner, Silver
Apple Part Number:923-04179

Screw, Bottom Case, Front Corner, Silver

923-04179 - Screws / Screw, Bottom Case, Front Corner, Silver for MacBook Pro 13-inch 2020 2 TBT3 Screw Location(s): Bottom Case (front corners) (2)
923-04177 – Screw, Bottom Case, Rear/Back Corner, Silver
Apple Part Number:923-04177

Screw, Bottom Case, Rear/Back Corner, Silver

923-04177 - Screws / Screw, Bottom Case, Rear/Back Corner, Silver for MacBook Pro 13-inch 2020 2 TBT3 Screw Location(s): Bottom Case (rear/top corners) (2)
923-04174 – Screw, Bottom Case, Rear/Back Corner, Space Gray
Apple Part Number:923-04174

Screw, Bottom Case, Rear/Back Corner, Space Gray

923-04174 - Screws / Screw, Bottom Case, Rear/Back Corner, Space Gray for MacBook Pro 13-inch 2020 2 TBT3 Screw Location(s): Bottom Case (rear/top corners) (2)
923-04175 – Screw, Bottom Case, Front Corner, Space Gray
Apple Part Number:923-04175

Screw, Bottom Case, Front Corner, Space Gray

923-04175 - Screws / Screw, Bottom Case, Front Corner, Space Gray for MacBook Pro 13-inch 2020 2 TBT3 Screw Location(s): Bottom Case (front corners) (2)
923-04180 – Screw, Bottom Case, Front Center, Silver
Apple Part Number:923-04180

Screw, Bottom Case, Front Center, Silver

923-04180 - Screws / Screw, Bottom Case, Front Center, Silver for MacBook Pro 13-inch 2020 2 TBT3 Screw Location(s): Bottom Case (front center) (2)
923-04176 – Screw, Bottom Case, Front Center, Space Gray
Apple Part Number:923-04176

Screw, Bottom Case, Front Center, Space Gray

923-04176 - Screws / Screw, Bottom Case, Front Center, Space Gray for MacBook Pro 13-inch 2020 2 TBT3 Screw Location(s): Bottom Case (front center) (2)
923-01189 – Screw, BMU Flex Cable, Torx T5
Apple Part Number:923-01189

Screw, BMU Flex Cable, Torx T5

923-01189 - Screws / Screw, BMU Flex Cable, Torx T5 for MacBook Pro 13-inch 2020 2 TBT3 Screw Location(s): Battery (BMU) (1)
923-02513 – Screw, I/O Board Cowling, Torx T3
Apple Part Number:923-02513

Screw, I/O Board Cowling, Torx T3

923-02513 - Screws / Screw, I/O Board Cowling, Torx T3 for MacBook Pro 13-inch 2020 2 TBT3 Screw Location(s): L-Shaped Cowling (3), Touch ID Upper Cowling (1)
923-03289 – Screw, Cowling, Trackpad and Touch Bar, Tox T5
Apple Part Number:923-03289

Screw, Cowling, Trackpad and Touch Bar, Tox T5

923-03289 - Screws / Screw, Cowling, Trackpad and Touch Bar, Tox T5 for MacBook Pro 13-inch 2020 2 TBT3 Screw Location(s): Trackpad Flex Cable Cowling (2)
923-01185 – Screw, Spring Tensioner, Torx T3
Apple Part Number:923-01185

Screw, Spring Tensioner, Torx T3

923-01185 - Screws / Screw, Spring Tensioner, Torx T3 for MacBook Pro 13-inch 2020 2 TBT3 Screw Location(s): Display Cable Spring Tensioners (4)
923-03526 – Screw, Cowling, Audio Board Flex, Upper, Torx T5
Apple Part Number:923-03526

Screw, Cowling, Audio Board Flex, Upper, Torx T5

923-03526 - Screws / Screw, Cowling, Audio Board Flex, Upper, Torx T5 for MacBook Pro 13-inch 2020 2 TBT3 Screw Location(s): Audio Board Flex Assembly Upper Cowling (1)
923-03527 – Screw, Cowling, Audio Board Flex, Lower, Torx T5
Apple Part Number:923-03527

Screw, Cowling, Audio Board Flex, Lower, Torx T5

923-03527 - Screws / Screw, Cowling, Audio Board Flex, Lower, Torx T5 for MacBook Pro 13-inch 2020 2 TBT3 Screw Location(s): Audio Board Flex Assembly Lower Cowling (1)
923-03554 – Screw, Cowling, Touch ID, Lower, Torx T3
Apple Part Number:923-03554

Screw, Cowling, Touch ID, Lower, Torx T3

923-03554 - Screws / Screw, Cowling, Touch ID, Lower, Torx T3 for MacBook Pro 13-inch 2020 2 TBT3 Screw Location(s): Touch ID Board Cowling (lower) (1)
923-04193 – Screw, Torx T3, Cowling, eDP Connector to TCON board, 5PK
Apple Part Number:923-04193

Screw, Torx T3, Cowling, eDP Connector to TCON board, 5PK

923-04193 - Screws / Screw, Torx T3, Cowling, eDP Connector to TCON board, 5PK for MacBook Pro 13-inch 2020 2 TBT3 Screw Location(s): eDP Connector to TCON Cowling (2)
923-01190 – Screw, Cowling, TCON Flex, Torx T3
Apple Part Number:923-01190

Screw, Cowling, TCON Flex, Torx T3

923-01190 - Screws / Screw, Cowling, TCON Flex, Torx T3 for MacBook Pro 13-inch 2020 2 TBT3 Screw Location(s): Display Cable (eDP) to Logic Board (2)
923-01407 – Screw, Shoulder, M1.6, Stage, X379, Torx T5
Apple Part Number:923-01407

Screw, Shoulder, M1.6, Stage, X379, Torx T5

923-01407 - Screws / Screw, Shoulder, M1.6, Stage, X379, Torx T5 for MacBook Pro 13-inch 2020 2 TBT3 Screw Location(s): Heatsink Springs (4)
923-03559 – Screw, IO (USB-C) Board, Torx T5
Apple Part Number:923-03559

Screw, IO (USB-C) Board, Torx T5

923-03559 - Screws / Screw, IO (USB-C) Board, Torx T5 for MacBook Pro 13-inch 2020 2 TBT3 Screw Location(s): I/O Board (USB-C/TBT3 Ports) (2)
923-03540 – Screw, Speaker, Torx T5
Apple Part Number:923-03540

Screw, Speaker, Torx T5

923-03540 - Screws / Screw, Speaker, Torx T5 for MacBook Pro 13-inch 2020 2 TBT3 Screw Location(s): Right Speaker (3), Left Speaker (2)
923-01286 – Screw, Display Clutch Cover, Torx T3
Apple Part Number:923-01286

Screw, Display Clutch Cover, Torx T3

923-01286 - Screws / Screw, Display Clutch Cover, Torx T3 for MacBook Pro 13-inch 2020 2 TBT3 Screw Location(s): Left Display Clutch/Hinge Covers (2), Right Display Clutch/Hinge Covers (2)
923-04191 – Screw, 1IPR / P2, Vent-Antenna Module
Apple Part Number:923-04191

Screw, 1IPR / P2, Vent-Antenna Module

923-04191 - Screws / Screw, 1IPR / P2, Vent-Antenna Module for MacBook Pro 13-inch 2020 2 TBT3 Screw Location(s): Vent/Antenna Module (12)
923-03284 – Screw, TCON Board, Torx T5
Apple Part Number:923-03284

Screw, TCON Board, Torx T5

923-03284 - Screws / Screw, TCON Board, Torx T5 for MacBook Pro 13-inch 2020 2 TBT3 Screw Location(s): TCON Board (4)
923-04256 – Screw, Torx T5, Logic Board to Antenna Ground Clip
Apple Part Number:923-04256

Screw, Torx T5, Logic Board to Antenna Ground Clip

923-04256 - Screws / Screw, Torx T5, Logic Board to Antenna Ground Clip for MacBook Pro 13-inch 2020 2 TBT3 Screw Location(s): Logic Board to Antenna Ground Clip (1)
923-03286 – Screw, Cowling, eDP Flex, Lower, Torx T3
Apple Part Number:923-03286

Screw, Cowling, eDP Flex, Lower, Torx T3

923-03286 - Screws / Screw, Cowling, eDP Flex, Lower, Torx T3 for MacBook Pro 13-inch 2020 2 TBT3 Screw Location(s): Cowling eDP Flex Cable (2)
923-04257 – Screw, Torx T5, Logic Board to Top Case, upper corner, 5PK
Apple Part Number:923-04257

Screw, Torx T5, Logic Board to Top Case, upper corner, 5PK

923-04257 - Screws / Screw, Torx T5, Logic Board to Top Case, upper corner, 5PK for MacBook Pro 13-inch 2020 2 TBT3 Screw Location(s): Logic Board to Top Case (Upper Corner) (1)
923-04255 – Screw, Torx T5, Logic Board to Top Case , 5PK
Apple Part Number:923-04255

Screw, Torx T5, Logic Board to Top Case , 5PK

923-04255 - Screws / Screw, Torx T5, Logic Board to Top Case , 5PK for MacBook Pro 13-inch 2020 2 TBT3 Screw Location(s): Logic Board to Top Case (3)
923-03290 – Screw, Heatsink, Hex 3mm
Apple Part Number:923-03290

Screw, Heatsink, Hex 3mm

923-03290 - Screws / Screw, Heatsink, Hex 3mm for MacBook Pro 13-inch 2020 2 TBT3 Screw Location(s): Heatsink Arm (1)

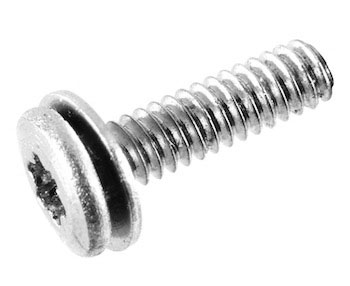

923-04188 – Screw, Torx T3, Audio Board Flex Assembly
Apple Part Number:923-04188

Screw, Torx T3, Audio Board Flex Assembly

923-04188 - Screws / Screw, Torx T3, Audio Board Flex Assembly for MacBook Pro 13-inch 2020 2 TBT3 Screw Location(s): Audio Board Flex Cable Assembly (2)
923-04187 – Screw, Fan, 5PK
Apple Part Number:923-04187

Screw, Fan, 5PK

923-04187 - Screws / Screw, Fan, 5PK for MacBook Pro 13-inch 2020 2 TBT3 Screw Location(s): CPU Cooling Fan (4)
923-03910 – Screw, Touch ID, Outer, Torx T3
Apple Part Number:923-03910

Screw, Touch ID, Outer, Torx T3

923-03910 - Screws / Screw, Touch ID, Outer, Torx T3 for MacBook Pro 13-inch 2020 2 TBT3 Screw Location(s): Touch ID (Outside/Outer) (4)
923-03911 – Screw, Touch ID, Middle, Torx T3
Apple Part Number:923-03911

Screw, Touch ID, Middle, Torx T3

923-03911 - Screws / Screw, Touch ID, Middle, Torx T3 for MacBook Pro 13-inch 2020 2 TBT3 Screw Location(s): Touch ID (Middle/Inner) (2)
923-04189 – Screw, Torx T8, Display Clutch to Top Case
Apple Part Number:923-04189

Screw, Torx T8, Display Clutch to Top Case

923-04189 - Screws / Screw, Torx T8, Display Clutch to Top Case for MacBook Pro 13-inch 2020 2 TBT3 Screw Location(s): Display Clutch to Top Case (6)
923-03557 – Screw, Trackpad, Middle, Torx T5
Apple Part Number:923-03557

Screw, Trackpad, Middle, Torx T5

923-03557 - Screws / Screw, Trackpad, Middle, Torx T5 for MacBook Pro 13-inch 2020 2 TBT3 Screw Location(s): Trackpad (Middle) (Shorter) (2)
923-03558 – Screw, Trackpad, Side, Torx T5
Apple Part Number:923-03558

Screw, Trackpad, Side, Torx T5

923-03558 - Screws / Screw, Trackpad, Side, Torx T5 for MacBook Pro 13-inch 2020 2 TBT3 Screw Location(s): Trackpad (Side) (8)
