Screw Tables/13-inch, 2020, 4 TBT3 Ports
Screw Tables

Apple MacBook Pro (13-inch, 2020, 4 TBT3 Ports)Screw Tables

A2251 — MacBookPro16,2 — EMC 3348

26 unique screws78 total fasteners
923-04177 – Screw, Bottom Case, Rear/Back Corner, Silver
Apple Part Number:923-04177

Screw, Bottom Case, Rear/Back Corner, Silver

923-04177 - Screws / Screw, Bottom Case, Rear/Back Corner, Silver for MacBook Pro 13-inch 2020 4 TBT3 Screw Location(s): Bottom Case Rear/Back Corner (2)
923-04174 – Screw, Bottom Case, Rear/Back Corner, Space Gray
Apple Part Number:923-04174

Screw, Bottom Case, Rear/Back Corner, Space Gray

923-04174 - Screws / Screw, Bottom Case, Rear/Back Corner, Space Gray for MacBook Pro 13-inch 2020 4 TBT3 Screw Location(s): Bottom Case Rear/Back Corner (2)
923-04180 – Screw, Bottom Case, Front Center, Silver
Apple Part Number:923-04180

Screw, Bottom Case, Front Center, Silver

923-04180 - Screws / Screw, Bottom Case, Front Center, Silver for MacBook Pro 13-inch 2020 4 TBT3 Screw Location(s): Bottom Case Front Center (2), Bottom Case Front Corner (2)
923-04176 – Screw, Bottom Case, Front Center, Space Gray
Apple Part Number:923-04176

Screw, Bottom Case, Front Center, Space Gray

923-04176 - Screws / Screw, Bottom Case, Front Center, Space Gray for MacBook Pro 13-inch 2020 4 TBT3 Screw Location(s): Bottom Case Front Center (2), Bottom Case Front Corner (2)
923-01418 – Screw, M1.6, Flex, BMU, X379, Torx T5
Apple Part Number:923-01418

Screw, M1.6, Flex, BMU, X379, Torx T5

923-01418 - Screws / Screw, M1.6, Flex, BMU, X379, Torx T5 for MacBook Pro 13-inch 2020 4 TBT3 Screw Location(s): BMU (Battery Connector) (1)
923-01286 – Screw, Display Clutch Cover, Torx T3
Apple Part Number:923-01286

Screw, Display Clutch Cover, Torx T3

923-01286 - Screws / Screw, Display Clutch Cover, Torx T3 for MacBook Pro 13-inch 2020 4 TBT3 Screw Location(s): Left Display Clutch Cover (2), Right Display Clutch Cover (2)
923-01641 – Screw, M1.2, Logic Board, Bottom Cowling, Torx T3
Apple Part Number:923-01641

Screw, M1.2, Logic Board, Bottom Cowling, Torx T3

923-01641 - Screws / Screw, M1.2, Logic Board, Bottom Cowling, Torx T3 for MacBook Pro 13-inch 2020 4 TBT3 Screw Location(s): Audio Board and Touch ID Cowling (2), Trackpad Flex Cable Cowling (2), Left I/O Board and Toucbar Flex (L-Shape) Cowling (3), Right I/O Board Cowling (2)

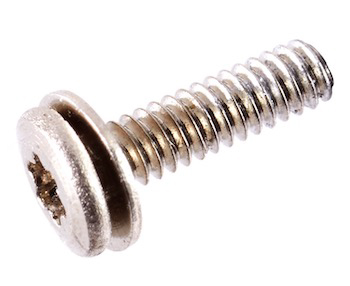

923-04355 – Screw, Audio Board, M1.2 X 0.25, J214
Apple Part Number:923-04355

Screw, Audio Board, M1.2 X 0.25, J214

923-04355 - Screws / Screw, Audio Board, M1.2 X 0.25, J214 for MacBook Pro 13-inch 2020 4 TBT3 Screw Location(s): Audio Board/Jack (3)
923-04193 – Screw, Torx T3, Cowling, eDP Connector to TCON board, 5PK
Apple Part Number:923-04193

Screw, Torx T3, Cowling, eDP Connector to TCON board, 5PK

923-04193 - Screws / Screw, Torx T3, Cowling, eDP Connector to TCON board, 5PK for MacBook Pro 13-inch 2020 4 TBT3 Screw Location(s): eDP Flex Cable Cowling Upper/Back/Rear (2)
923-03286 – Screw, Cowling, eDP Flex, Lower, Torx T3
Apple Part Number:923-03286

Screw, Cowling, eDP Flex, Lower, Torx T3

923-03286 - Screws / Screw, Cowling, eDP Flex, Lower, Torx T3 for MacBook Pro 13-inch 2020 4 TBT3 Screw Location(s): eDP Flex Cable Cowling Lower/Front (2)
923-03284 – Screw, TCON Board, Torx T5
Apple Part Number:923-03284

Screw, TCON Board, Torx T5

923-03284 - Screws / Screw, TCON Board, Torx T5 for MacBook Pro 13-inch 2020 4 TBT3 Screw Location(s): Display TCON Board to Top Case (4)
923-01427 – Screw, Logic Board, Torx T5
Apple Part Number:923-01427

Screw, Logic Board, Torx T5

923-01427 - Screws / Screw, Logic Board, Torx T5 for MacBook Pro 13-inch 2020 4 TBT3 Screw Location(s): Wireless Antenna to Logic Board (1), Logic Board (5)
923-04191 – Screw, 1IPR / P2, Vent-Antenna Module
Apple Part Number:923-04191

Screw, 1IPR / P2, Vent-Antenna Module

923-04191 - Screws / Screw, 1IPR / P2, Vent-Antenna Module for MacBook Pro 13-inch 2020 4 TBT3 Screw Location(s): Vent/Antenna Module (12)
923-01185 – Screw, Spring Tensioner, Torx T3
Apple Part Number:923-01185

Screw, Spring Tensioner, Torx T3

923-01185 - Screws / Screw, Spring Tensioner, Torx T3 for MacBook Pro 13-inch 2020 4 TBT3 Screw Location(s): Display Cable Spring Tensioners (4)
923-04189 – Screw, Torx T8, Display Clutch to Top Case
Apple Part Number:923-04189

Screw, Torx T8, Display Clutch to Top Case

923-04189 - Screws / Screw, Torx T8, Display Clutch to Top Case for MacBook Pro 13-inch 2020 4 TBT3 Screw Location(s): Display Clutch to Top Case (6)
923-01425 – Screw, M1.6 x 2.0, Torx T5, TM Tie Down, Shoulder
Apple Part Number:923-01425

Screw, M1.6 x 2.0, Torx T5, TM Tie Down, Shoulder

923-01425 - Screws / Screw, M1.6 x 2.0, Torx T5, TM Tie Down, Shoulder for MacBook Pro 13-inch 2020 4 TBT3 Screw Location(s): Logic Board Rear/Back (Heatsink Arms) (2)
923-04357 – Screw, M1.2 x 0.25, Torx T3, Logic Board
Apple Part Number:923-04357

Screw, M1.2 x 0.25, Torx T3, Logic Board

923-04357 - Screws / Screw, M1.2 x 0.25, Torx T3, Logic Board for MacBook Pro 13-inch 2020 4 TBT3 Screw Location(s): Logic Board Front (3)
923-03557 – Screw, Trackpad, Middle, Torx T5
Apple Part Number:923-03557

Screw, Trackpad, Middle, Torx T5

923-03557 - Screws / Screw, Trackpad, Middle, Torx T5 for MacBook Pro 13-inch 2020 4 TBT3 Screw Location(s): Trackpad to Top Case (Middle) (2)
923-03558 – Screw, Trackpad, Side, Torx T5
Apple Part Number:923-03558

Screw, Trackpad, Side, Torx T5

923-03558 - Screws / Screw, Trackpad, Side, Torx T5 for MacBook Pro 13-inch 2020 4 TBT3 Screw Location(s): Trackpad to Top Case (Sides) (8)
923-01422 – Screw, M1.2, eDP Flex Cowling to Logic Board, X379, Torx T3
Apple Part Number:923-01422

Screw, M1.2, eDP Flex Cowling to Logic Board, X379, Torx T3

923-01422 - Screws / Screw, M1.2, eDP Flex Cowling to Logic Board, X379, Torx T3 for MacBook Pro 13-inch 2020 4 TBT3 Screw Location(s): eDP (Display) Flex Cable Cowling to Logic Board (2)
923-04354 – Screw, Fan, M1.2x0.25, Torx T3
Apple Part Number:923-04354

Screw, Fan, M1.2x0.25, Torx T3

923-04354 - Screws / Screw, Fan, M1.2x0.25, Torx T3 for MacBook Pro 13-inch 2020 4 TBT3 Screw Location(s): Left CPU Cooling Fan (4), Right CPU Cooling Fan (4)
923-04356 – Screw, Shoulder, M1.6, X1413, Torx T5
Apple Part Number:923-04356

Screw, Shoulder, M1.6, X1413, Torx T5

923-04356 - Screws / Screw, Shoulder, M1.6, X1413, Torx T5 for MacBook Pro 13-inch 2020 4 TBT3 Screw Location(s): Heatsink CPU Springs (4)
923-01441 – Screw, Cowling, Torx T5
Apple Part Number:923-01441

Screw, Cowling, Torx T5

923-01441 - Screws / Screw, Cowling, Torx T5 for MacBook Pro 13-inch 2020 4 TBT3 Screw Location(s): Left I/O Board (2), Right I/O Board (2)
923-03910 – Screw, Touch ID, Outer, Torx T3
Apple Part Number:923-03910

Screw, Touch ID, Outer, Torx T3

923-03910 - Screws / Screw, Touch ID, Outer, Torx T3 for MacBook Pro 13-inch 2020 4 TBT3 Screw Location(s): Touch ID Button/Flexure (Outer)
923-03911 – Screw, Touch ID, Middle, Torx T3
Apple Part Number:923-03911

Screw, Touch ID, Middle, Torx T3

923-03911 - Screws / Screw, Touch ID, Middle, Torx T3 for MacBook Pro 13-inch 2020 4 TBT3 Screw Location(s): Touch ID Button/Flexure (Middle)
923-04290 – Mylar Rubber Cover/Cap for Logic Board Heat Sink Arms Screws
Apple Part Number:923-04290

Mylar Rubber Cover/Cap for Logic Board Heat Sink Arms Screws

923-04290 - Screws / Mylar Rubber Cover/Cap for Logic Board Heat Sink Arms Screws for MacBook Pro 13-inch 2020 4 TBT3 Screw Location(s): Logic Board Heat Sink Arms Screws (2)
