Screw Tables
Apple MacBook Pro Retina (13-inch, Early 2015)Screw Tables
A1502 — MacBookPro12,1 — EMC 2835
17 unique screws42 total fasteners

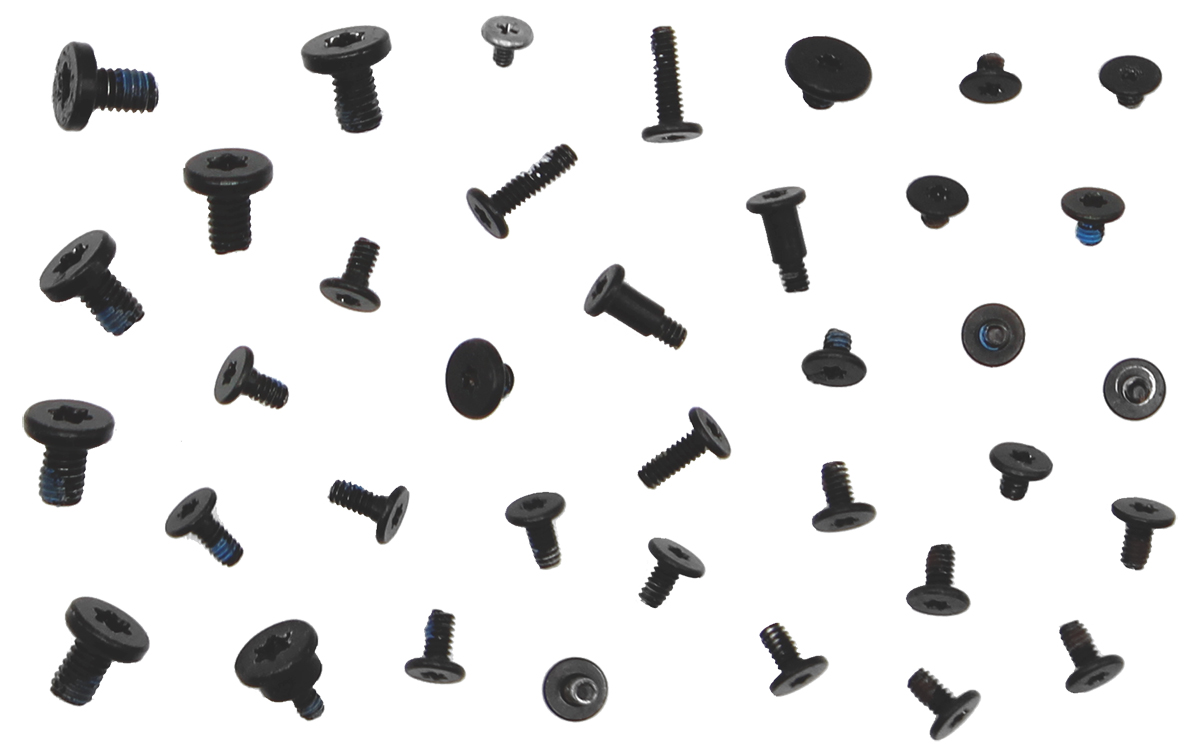

Apple Part Number:999-0001
Screws Full Set/Kit, 32+ Pieces
999-0001 - Screws / Screws Full Set/Kit, 32+ Pieces for MacBook Pro Retina 13-inch Early 2015 Screw Location(s):
Apple Part Number:923-0132
Screw, Pentalobe P5
923-0132 - Screws / Screw, Pentalobe P5 for MacBook Pro Retina 13-inch Early 2015 Screw Location(s): Bottom Case (2)
Apple Part Number:923-0645
Screw, Shoulder, Pentalobe P5, Bottom Case
923-0645 - Screws / Screw, Shoulder, Pentalobe P5, Bottom Case for MacBook Pro Retina 13-inch Early 2015 Screw Location(s): Bottom Case (8)
Apple Part Number:923-0649
Screw, Torx T5, 3.1 x 1.6
923-0649 - Screws / Screw, Torx T5, 3.1 x 1.6 for MacBook Pro Retina 13-inch Early 2015 Screw Location(s): I/O Flex Cable (Clip) (4)
Apple Part Number:923-0647
Screw, Short, Speaker, 1.6 mm, Torx T5
923-0647 - Screws / Screw, Short, Speaker, 1.6 mm, Torx T5 for MacBook Pro Retina 13-inch Early 2015 Screw Location(s): Left Speaker (corner) (1), Right Speaker (corner) (1)
Apple Part Number:923-0651
Screw, Speaker, 1.6 mm, Torx T5
923-0651 - Screws / Screw, Speaker, 1.6 mm, Torx T5 for MacBook Pro Retina 13-inch Early 2015 Screw Location(s): Left Speaker (front) (1), Right Speaker (front) (1)
Apple Part Number:923-0644
Screw, Torx T5, 6.75mm
923-0644 - Screws / Screw, Torx T5, 6.75mm for MacBook Pro Retina 13-inch Early 2015 Screw Location(s): Left Speaker (rear) (1), Right Speaker (rear) (1)
Apple Part Number:923-0314
Screw, Torx T5
923-0314 - Screws / Screw, Torx T5 for MacBook Pro Retina 13-inch Early 2015 Screw Location(s): Wireless Card (1)
Apple Part Number:922-9651
Screw, 2 x 2mm, Torx T5
922-9651 - Screws / Screw, 2 x 2mm, Torx T5 for MacBook Pro Retina 13-inch Early 2015 Screw Location(s): Solid State Drive (SSD) (1)
Apple Part Number:923-0235
Screw 1.6 x 3.6 mm, Torx T5, Black
923-0235 - Screws / Screw 1.6 x 3.6 mm, Torx T5, Black for MacBook Pro Retina 13-inch Early 2015 Screw Location(s): Logic Board (5), MagSafe Board (2), I/O Board (near cable) (1)
Apple Part Number:923-0238
Screw M1.2 x 3.0, Phillips 00
923-0238 - Screws / Screw M1.2 x 3.0, Phillips 00 for MacBook Pro Retina 13-inch Early 2015 Screw Location(s): Heatsink (near I/O board) (1)
Apple Part Number:923-00522
Screw 1.6 x 1.8 mm, Torx T5
923-00522 - Screws / Screw 1.6 x 1.8 mm, Torx T5 for MacBook Pro Retina 13-inch Early 2015 Screw Location(s): Heatsink (center) (4)
Apple Part Number:923-0646
Screw 1.6 x 3.1 mm, Torx T5, Black
923-0646 - Screws / Screw 1.6 x 3.1 mm, Torx T5, Black for MacBook Pro Retina 13-inch Early 2015 Screw Location(s): Fan (front and inner side) (2)
Apple Part Number:923-00109
Screw 1.6 x 4.5 mm, Torx T5, Black
923-00109 - Screws / Screw 1.6 x 4.5 mm, Torx T5, Black for MacBook Pro Retina 13-inch Early 2015 Screw Location(s): Fan (outer side) (1)
Apple Part Number:923-0237
Screw, Standoff, Torx T8, Shoulder, Black
923-0237 - Screws / Screw, Standoff, Torx T8, Shoulder, Black for MacBook Pro Retina 13-inch Early 2015 Screw Location(s): I/O Board (1)
Apple Part Number:923-0650
Screw 1.6 x 3.6 mm, Torx T5, Black
923-0650 - Screws / Screw 1.6 x 3.6 mm, Torx T5, Black for MacBook Pro Retina 13-inch Early 2015 Screw Location(s): Display End Caps (2)
Apple Part Number:923-0139
Screw, 2.5 x 3.9 mm, Torx T8, Black
923-0139 - Screws / Screw, 2.5 x 3.9 mm, Torx T8, Black for MacBook Pro Retina 13-inch Early 2015 Screw Location(s): Display Assembly Clutches (6)
