Screw Tables/15-inch, Early 2013
Screw Tables

Apple MacBook Pro Retina (15-inch, Early 2013)Screw Tables

A1398 — MacBookPro10,1 — EMC 2673

23 unique screws45 total fasteners

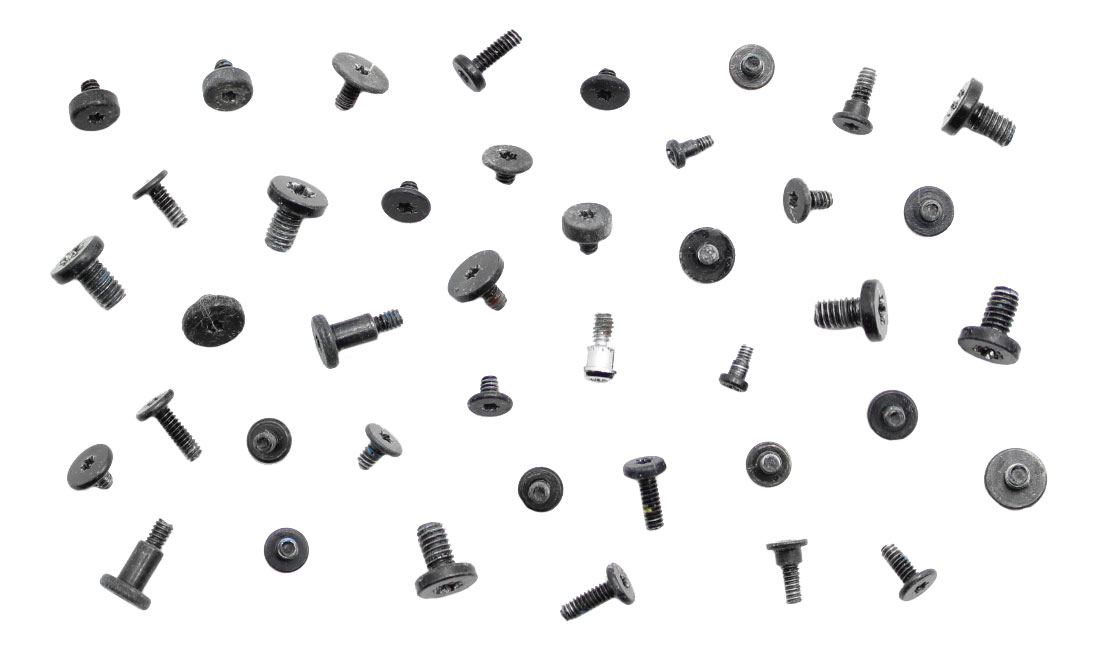

999-0003 – Screws Full Set/Kit, 32+ Pieces
Apple Part Number:999-0003

Screws Full Set/Kit, 32+ Pieces

999-0003 - Screws / Screws Full Set/Kit, 32+ Pieces for MacBook Pro Retina 15-inch Early 2013 Screw Location(s):
923-0131 – Screw, Pentalobe, Shoulder
Apple Part Number:923-0131

Screw, Pentalobe, Shoulder

923-0131 - Screws / Screw, Pentalobe, Shoulder for MacBook Pro Retina 15-inch Early 2013 Screw Location(s): Bottom Case (8)
923-0132 – Screw, Pentalobe P5
Apple Part Number:923-0132

Screw, Pentalobe P5

923-0132 - Screws / Screw, Pentalobe P5 for MacBook Pro Retina 15-inch Early 2013 Screw Location(s): Bottom Case (2)
923-0161 – Screw, M2 x 1.8, Torx T5
Apple Part Number:923-0161

Screw, M2 x 1.8, Torx T5

923-0161 - Screws / Screw, M2 x 1.8, Torx T5 for MacBook Pro Retina 15-inch Early 2013 Screw Location(s): Solid State Drive (SSD) (1)
922-9651 – Screw, 2 x 2mm, Torx T5
Apple Part Number:922-9651

Screw, 2 x 2mm, Torx T5

922-9651 - Screws / Screw, 2 x 2mm, Torx T5 for MacBook Pro Retina 15-inch Early 2013 Screw Location(s): Wireless Card (1)
923-0149 – Screw, M1.6 x 3.6, Torx T5, Large Head
Apple Part Number:923-0149

Screw, M1.6 x 3.6, Torx T5, Large Head

923-0149 - Screws / Screw, M1.6 x 3.6, Torx T5, Large Head for MacBook Pro Retina 15-inch Early 2013 Screw Location(s): Right Fan (thick head) (1)
923-0133 – Screw, M1.6 x 3.0, Torx T5, Black
Apple Part Number:923-0133

Screw, M1.6 x 3.0, Torx T5, Black

923-0133 - Screws / Screw, M1.6 x 3.0, Torx T5, Black for MacBook Pro Retina 15-inch Early 2013 Screw Location(s): Right Fan (1), Left Fan (1)
923-0162 – Screw, M1.6 x 4.5, Torx T5
Apple Part Number:923-0162

Screw, M1.6 x 4.5, Torx T5

923-0162 - Screws / Screw, M1.6 x 4.5, Torx T5 for MacBook Pro Retina 15-inch Early 2013 Screw Location(s): Left Fan (front) (1), Right Fan (front) (1)
923-0158 – Screw, M1.6 x 2.95, Torx T5
Apple Part Number:923-0158

Screw, M1.6 x 2.95, Torx T5

923-0158 - Screws / Screw, M1.6 x 2.95, Torx T5 for MacBook Pro Retina 15-inch Early 2013 Screw Location(s): Left fan (thin head) (1)
923-0135 – Screw, M1.6 x 2.6, Torx T5, Black
Apple Part Number:923-0135

Screw, M1.6 x 2.6, Torx T5, Black

923-0135 - Screws / Screw, M1.6 x 2.6, Torx T5, Black for MacBook Pro Retina 15-inch Early 2013 Screw Location(s): Display End Caps (2), I/O board (2)
923-0148 – Screw, M1.6 x 3.6, Torx T5, Nickel
Apple Part Number:923-0148

Screw, M1.6 x 3.6, Torx T5, Nickel

923-0148 - Screws / Screw, M1.6 x 3.6, Torx T5, Nickel for MacBook Pro Retina 15-inch Early 2013 Screw Location(s): Heatsink to Top Case (I/O Board Side) (1)
923-0147 – Screw, M1.6 x 3.6, T5, Ground Cap
Apple Part Number:923-0147

Screw, M1.6 x 3.6, T5, Ground Cap

923-0147 - Screws / Screw, M1.6 x 3.6, T5, Ground Cap for MacBook Pro Retina 15-inch Early 2013 Screw Location(s): Heatsink to Logic Board / Top Case (1)
923-0145 – Screw, M1.6 x 4.9, Torx T5, Black
Apple Part Number:923-0145

Screw, M1.6 x 4.9, Torx T5, Black

923-0145 - Screws / Screw, M1.6 x 4.9, Torx T5, Black for MacBook Pro Retina 15-inch Early 2013 Screw Location(s): Logic Board (rear) (2)
923-0144 – Screw, M1.6x3.6, Torx T5, Black
Apple Part Number:923-0144

Screw, M1.6x3.6, Torx T5, Black

923-0144 - Screws / Screw, M1.6x3.6, Torx T5, Black for MacBook Pro Retina 15-inch Early 2013 Screw Location(s): Logic Board (1), MagSafe 2 Board (2)
923-0140 – Screw, M1.6 x 2.0, Torx T5, Black
Apple Part Number:923-0140

Screw, M1.6 x 2.0, Torx T5, Black

923-0140 - Screws / Screw, M1.6 x 2.0, Torx T5, Black for MacBook Pro Retina 15-inch Early 2013 Screw Location(s): Left fan duct (1), Logic board (1)
923-0141 – Screw, M1.6 x 1.8, Torx T5, Black
Apple Part Number:923-0141

Screw, M1.6 x 1.8, Torx T5, Black

923-0141 - Screws / Screw, M1.6 x 1.8, Torx T5, Black for MacBook Pro Retina 15-inch Early 2013 Screw Location(s): Heatsink (thick head) (6)
923-0159 – Screw, M1.6 x 1.8, Heatsink, Short Head
Apple Part Number:923-0159

Screw, M1.6 x 1.8, Heatsink, Short Head

923-0159 - Screws / Screw, M1.6 x 1.8, Heatsink, Short Head for MacBook Pro Retina 15-inch Early 2013 Screw Location(s): Heatsink (thin head) (2)
923-0143 – Screw, M1.6, Speaker, Torx T5, Black
Apple Part Number:923-0143

Screw, M1.6, Speaker, Torx T5, Black

923-0143 - Screws / Screw, M1.6, Speaker, Torx T5, Black for MacBook Pro Retina 15-inch Early 2013 Screw Location(s): Left Speaker (rear) (1), Right Speaker (rear) (1)
923-0146 – Screw, M1.6 x 3.55, Torx T5, Speaker
Apple Part Number:923-0146

Screw, M1.6 x 3.55, Torx T5, Speaker

923-0146 - Screws / Screw, M1.6 x 3.55, Torx T5, Speaker for MacBook Pro Retina 15-inch Early 2013 Screw Location(s): Left Speaker (center) (1), Right Speaker (center) (1)
923-0138 – Screw, M1.6, Speaker, Front, Torx T5
Apple Part Number:923-0138

Screw, M1.6, Speaker, Front, Torx T5

923-0138 - Screws / Screw, M1.6, Speaker, Front, Torx T5 for MacBook Pro Retina 15-inch Early 2013 Screw Location(s): Left Speaker (front) (1), Right Speaker (front) (1)
923-0111 – Ground Rubber Screw Cap
Apple Part Number:923-0111

Ground Rubber Screw Cap

923-0111 - Screws / Ground Rubber Screw Cap for MacBook Pro Retina 15-inch Early 2013 Screw Location(s): Heatsink Screw (1)
923-0142 – Screw, M1.2 x 3.0
Apple Part Number:923-0142

Screw, M1.2 x 3.0

923-0142 - Screws / Screw, M1.2 x 3.0 for MacBook Pro Retina 15-inch Early 2013 Screw Location(s): Audio Board / Jack to Top Case (2)
923-0139 – Screw, 2.5 x 3.9 mm, Torx T8, Black
Apple Part Number:923-0139

Screw, 2.5 x 3.9 mm, Torx T8, Black

923-0139 - Screws / Screw, 2.5 x 3.9 mm, Torx T8, Black for MacBook Pro Retina 15-inch Early 2013 Screw Location(s): Display Hinge Clutch (6)
