Screw Tables/MacBook 12" Early 2015
Screw Tables

Apple MacBook (Retina, 12", Early 2015)Screw Tables

A1534 \u2014 MacBook8,1 \u2014 EMC 2746

20 unique screws44 total fasteners
923-00416 – Screw, Medium, Pentalobe, Bottom Case, Silver
Apple Part Number:923-00416

Screw, Medium, Pentalobe, Bottom Case, Silver

Bottom Case (4)

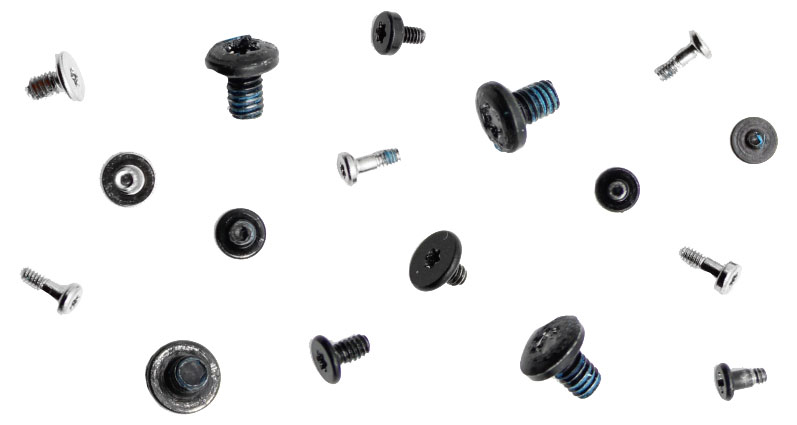

999-0016 – Screws Full Set/Kit, 18+ Pieces
Apple Part Number:999-0016

Screws Full Set/Kit, 18+ Pieces

923-00432 – Screw, Medium, Pentalobe, Bottom Case, Space Gray
Apple Part Number:923-00432

Screw, Medium, Pentalobe, Bottom Case, Space Gray

Bottom Case (4)
923-00431 – Screw, Short, Pentalobe, Bottom Case, Space Gray
Apple Part Number:923-00431

Screw, Short, Pentalobe, Bottom Case, Space Gray

Bottom Case (2)
923-00430 – Screw, Long, Pentalobe, Bottom Case, Space Gray
Apple Part Number:923-00430

Screw, Long, Pentalobe, Bottom Case, Space Gray

Bottom Case (2)
923-00427 – Screw, Short, Pentalobe, Bottom Case, Gold
Apple Part Number:923-00427

Screw, Short, Pentalobe, Bottom Case, Gold

Bottom Case (2)
923-00426 – Screw, M2.5, Torx T8
Apple Part Number:923-00426

Screw, M2.5, Torx T8

Display Assembly Clutch (4)
923-00425 – Screw, M1.6, Torx T5, Ground Clip
Apple Part Number:923-00425

Screw, M1.6, Torx T5, Ground Clip

Logic Board to Bottom Case Grounding Screw (1)
923-00421 – Screw, Torx T5
Apple Part Number:923-00421

Screw, Torx T5

Audio Board to Top Case (2)
923-00419 – Screw, M1.6, Torx T5
Apple Part Number:923-00419

Screw, M1.6, Torx T5

Logic Board to Bottom Case with Battery (1)
I/O Board Flex Cable (lower) to Logic Board (1)

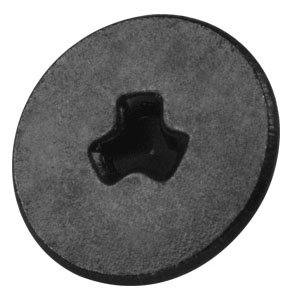

923-00417 – Screw, Trilobe 000 or Phillips 000, M1.2
Apple Part Number:923-00417

Screw, Trilobe 000 or Phillips 000, M1.2

I/O board flex cable (upper) to logic board (1)
923-00415 – Screw, Short, Pentalobe, Bottom Case, Silver
Apple Part Number:923-00415

Screw, Short, Pentalobe, Bottom Case, Silver

Bottom Case (2)
923-00414 – Screw, Long, Pentalobe, Bottom Case, Silver
Apple Part Number:923-00414

Screw, Long, Pentalobe, Bottom Case, Silver

Bottom Case (2)
923-00409 – Screw, Long, Pentalobe, Bottom Case, Gold
Apple Part Number:923-00409

Screw, Long, Pentalobe, Bottom Case, Gold

Bottom Case (2)
923-00406 – Screw, Medium, Pentalobe, Bottom Case, Gold
Apple Part Number:923-00406

Screw, Medium, Pentalobe, Bottom Case, Gold

Bottom Case (4)
923-00424 – Screw, Phillips
Apple Part Number:923-00424

Screw, Phillips

Top Case Side (outer) of I/O Board Flex Cable (1)
923-00472 – Screw, Mushroom, Side Snap, Torx T3
Apple Part Number:923-00472

Screw, Mushroom, Side Snap, Torx T3

Top Case Standoff (2)
923-00455 – Screw, M1.6, Torx T5
Apple Part Number:923-00455

Screw, M1.6, Torx T5

Timing controller (TCON) board (2)
923-00423 – Screw, Torx T3
Apple Part Number:923-00423

Screw, Torx T3

I/O board to top case with keyboard (1)
923-00420 – Screw, Torx T3, M1.2
Apple Part Number:923-00420

Screw, Torx T3, M1.2

Speaker/Antenna Module to Bottom Case (4)
